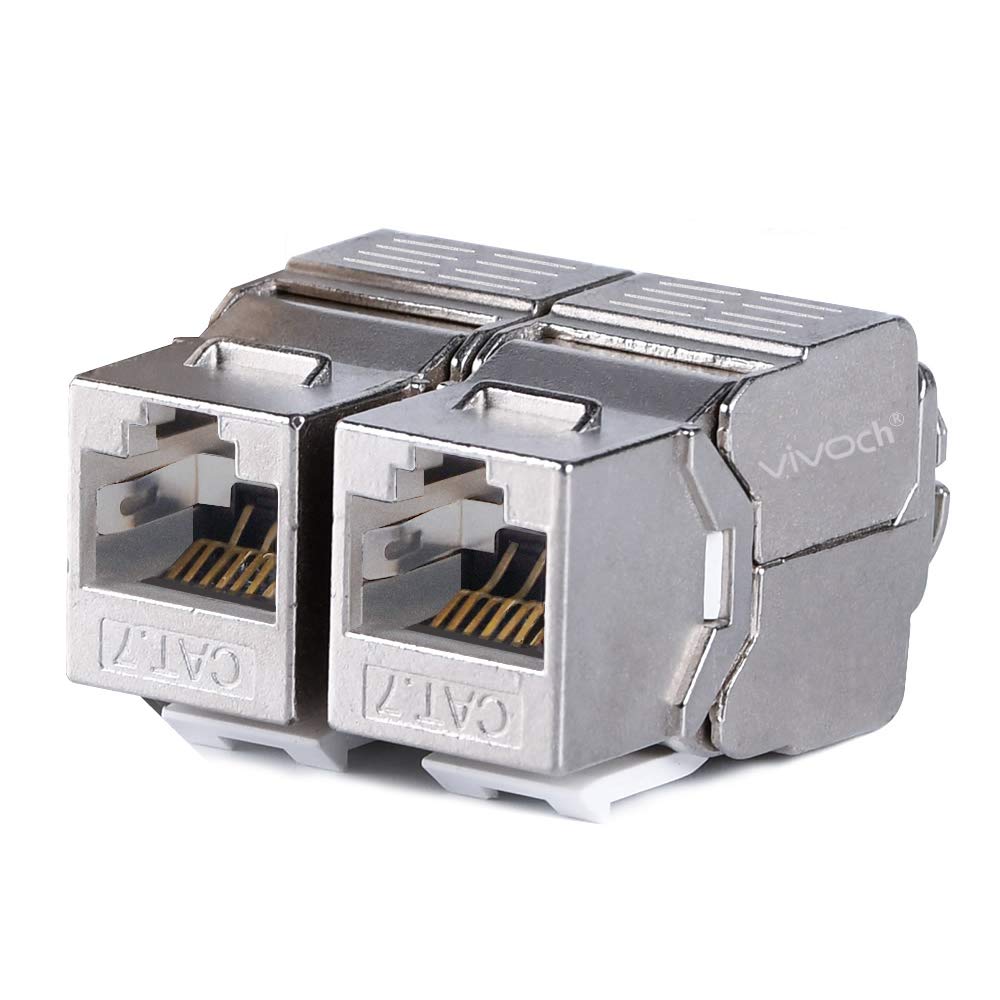

10-Pack Cat7 Keystone Jack - Shielded RJ45 FTP Tool-Less Zinc Alloy Modular Jack Adapter for 10G Ethernet - Perfect for Home/Office Network Setup & Server Rooms

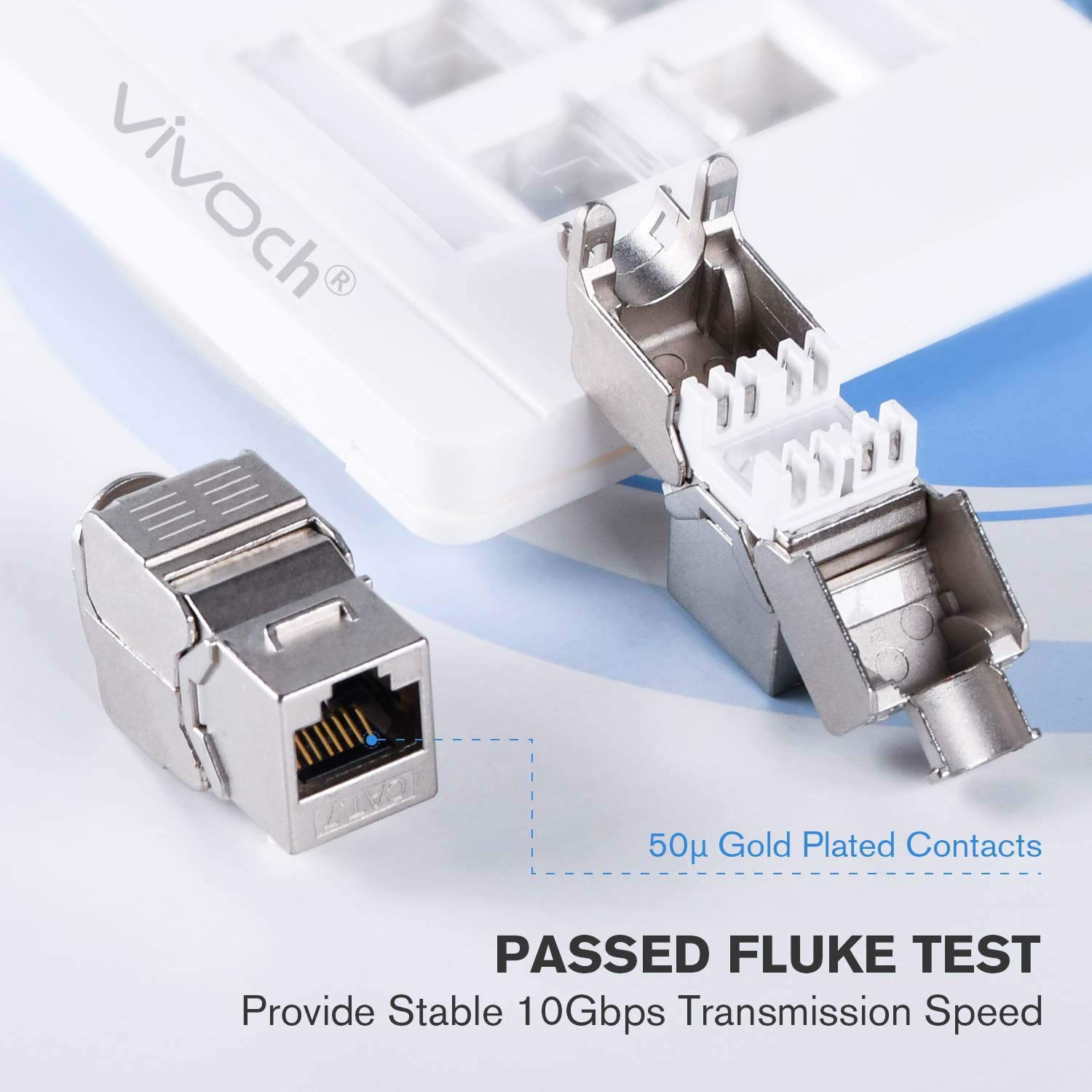

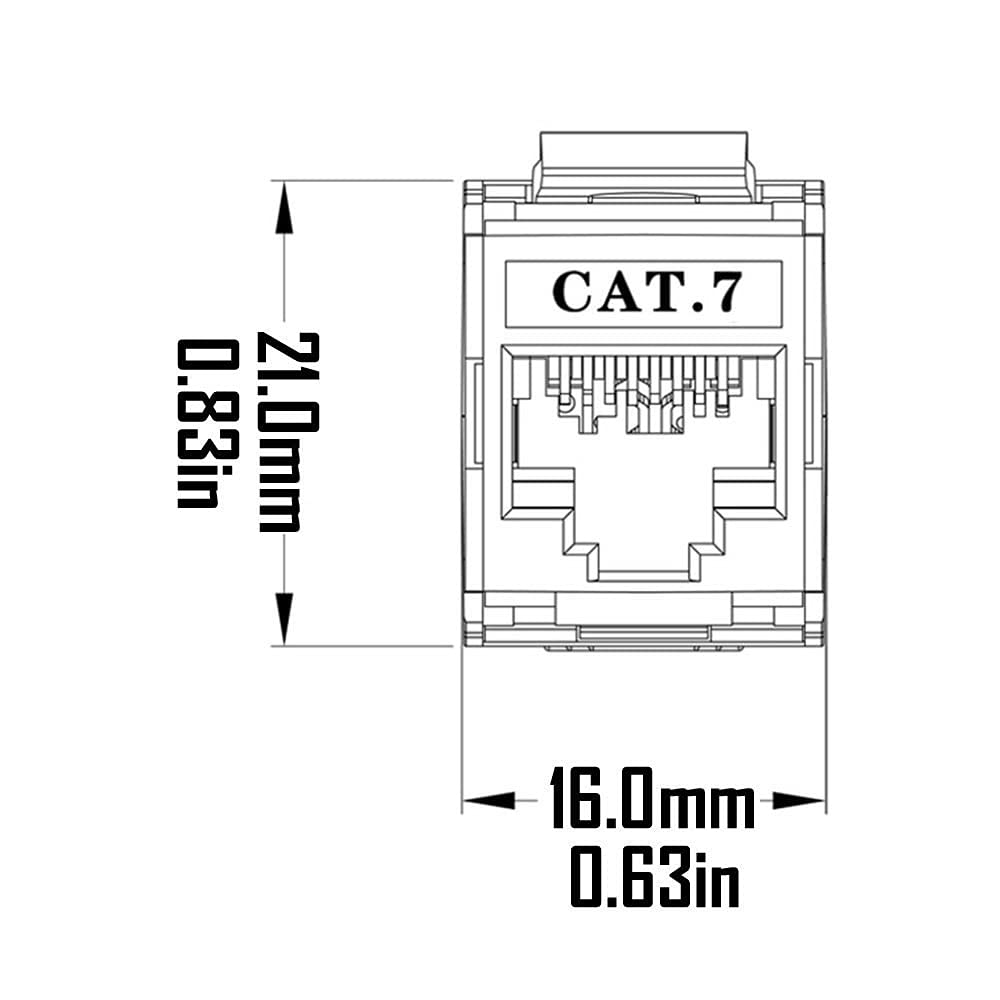

Cat7 STP Zinc Alloy Keystone Jack Module Type: Tool-Less type.Plug In/Out: More than 750 times (>750).Connect: More than 250 times (>250).Pin: 50 micron Gold-Plated.UL, CE, FCC certified.100% standard test approved.Meet the TIA 968-A (FCC Part 68) and IEC 4.0603-7-4 requirements for RJ45 8-way connector.Compatible for both T568A and T568B wiring schemes.Fully automatic quality inspection for highest quality.Size: L:1.53inch W:0.83inch H:0.63inch (39mm x 21mm x 16mm). Adapts to 5G Network According to UL 1863Current rating: 1.5 Amp MaxVoltage rating: 150 VoltsContact resistance: 20 m-ohmInsulation Resistance: 500M-ohmDielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min.Housing: PC UL94V-0IDC: PC UL94V-0, Accept 22-26 AWG Solid WirePCB: FR4 1.6mm(0.04") thickness, 2 layersContact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area. Unique Design High performance PBC circuit board The unique design of PCB reduces EMI / RFI interference, brings lower signal attenuation and higher return loss. IDC terminal block, phosphor bronze bayonet The high-strength thread striking column, together with the phosphor bronze piercing type bayonet, can be easily driven into the wire core to closely fit, up to 300 times of thread striking, and the contact is stable and continuous. Hit free device It adopts the method of type free installation, does not need the crimping of the wire clamp, and has the general wire sequence, which is quick and convenient to operate. Support 568A/568B and Easy to Use Angle: 180 DegreeTermination: 110&Krone TypePut the line go through by the line colorDistinguish the order of 568A/568B cores according to the color shown in Figure A/B Design for 22 to 26 AWG Cable Meet TIA/EIA-568A and TIA/EIA-568B Category 7 cables requirementsMeet TIA/EIA TSB-40Meet ISO/IEC Generic Cabling Standard 11801Meet CENELEC Generic Cabling Standard EN50173 Fit the Patch Panel Fits a standard keystone jack slot.Terminate in a shielded patch panel.Part of a shielded 10G network.Applied to LAN work area, data communication, integrated wiring and etc. Fit the Wall Plate Fit the wall plate: 1 port, 2 port, 4 port, etc.Part of a shielded 10G network. Cat6 Keystone Cat6A Keystone Cat8 Keystone Cat7 Coupler Cat7 FTP Connectors Blank UTP/FTP Patch Panel Add to Cart Buying Options Buying Options Add to Cart Add to Cart Buying Options Customer Reviews 4.0 out of 5 stars 3 3.8 out of 5 stars 126 3.8 out of 5 stars 126 4.6 out of 5 stars 67 3.9 out of 5 stars 123 — Price $30.99$30.99 — no data — no data $29.99$29.99 $30.99$30.99 — no data Description Cat6 RJ45 UTP Tool-Less Type Module Keystone Jack No Punch Down Tool Required Cat6A RJ45 FTP Tool-Less Type Zinc Alloy Module Shielded Keystone Jack Adapter 10 Gigabit Modular Jack Cat8 RJ45 FTP Tool-Less Type Zinc Alloy Module Shielded Keystone Jack Adapter 40 Gigabit Modular Jack Cat7 Keystone Jack Inline Coupler Sheilded RJ45 8P8C Connector Cat7 10Gbps for Ethernet LAN Cable Extender Adapter Cat7 2-Piece Metal Shielded RJ45 Plug Connector FTP 8P8C Modular Network Plug Connector (Wire Hole 1.45mm/0.057in) Blank UTP/FTP Patch Panel, Wallmount or Rackmount Blank Patch Panel Frequency 250MHZ 500MHZ 2000MHZ 600MHZ 600MHZ no data Fit the patch panel ✓ ✓ ✓ ✓ ✓ ✓ Fit the wall plate ✓ ✓ ✓ ✓ ✓ no data Size 1.38 * 1.02 * 0.6 in 1.5 * 0.83 * 0.63 in 1.34 * 0.83 * 0.63 in 1.3 * 0.63 * 0.55 in 0.83 * 0.43 * 0.24 in no data
